3.5MHz/R60 convex probe:
5 MHz/R20 Miro-convex array probe:
6.5MHz/R13 Cavity probe:
7.5 MHz/L40 Linear array probe:
Image Mutiplying Factor:
3.5MHz/R60 convex array probe: x0.8, x1.0, x1.2, x1.5,x1 .8, x2.0
6.5MHz/R13 Dimpling array probe: x0.8, x1.0, x1.2, x1.5
7.5MHz/L40 Line array probe: x0.8, x1.0, x1.2, x1.5
Zoom:magnify 2 times
Dynamic Range:0~120dB ajustable
Focus Position:1,2,3 and 4-segments dynamic electron focusing
Image Processing: γcorrection, frame correlation,point correlation, line
correlation, digital filtering, digital edge enhancement and pseudo
color processing, etc.According to the user’s pattern style
preference, the parameter will be set up automatically and saved
,Boot default this parameter.
Puncture Guide:3.5MHz convex array probe can display puncture guide line in B mode
Gain Control:8 segments TGC and overall gain can be adjusted respectively

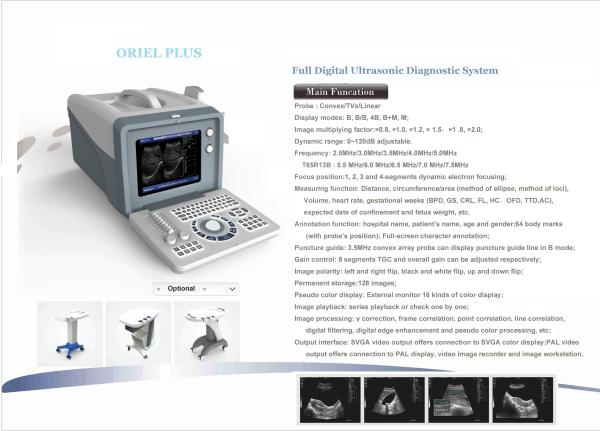

bovine cattle portable vet ultrasound machine
Features:
1. Mass memory , cine loop and permanent storage.
2. Radium Caved buttons and Silicon backlit buttons to be chosen;
3. Intelligent fluorescence trackball.
4. 8-segment TGC control. Overall Gain control
5. 2 USB ports , Upgraded and expandable printer function;
6. 2probe connectors. Probe automatic identfication;
7. 2SVGA video outputs and 21 PAL video outputs offer connection to
video image recorder and image workstation. etc.
8. Report page is generated automatically.
9. According to the user's pattern style preference, the parameter
will be set up automatically and saved ,Boot default this
parameter. This default of parameter can aslo be modified in the
menue.
10.Measuring Function:Distance,circumference/area, heart rate, gestational weeks
(BPD,GS,CRL,FL,HL,OFD,TTD,AC), fetus weight, etc.
Annotation Function:hospital name, patient’s name, age and gender 64 body marks (with
probe’s position);Full-screen character annotation; Real-time clock
display
