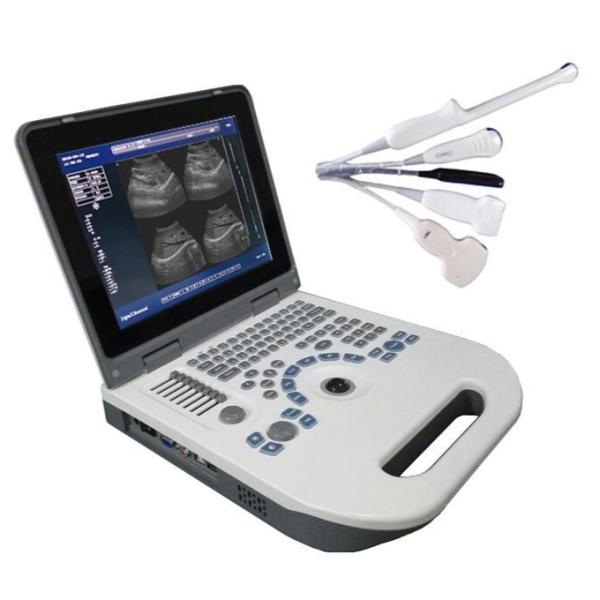

| Model | Portable Ultrasound Equipment For Human Use |
| Display Modes | 3.5MHz/R60 convex array probe: B,B/B,4B,B+M,M |
| 6.5MHz/R13 Dimpling array probe: B |
| 7.5 MHz/L40 Line array probe: B |
| Image Mutiplying Factor | 3.5MHz/R60 convex array probe: x0.8, x1.0, x1.2, x1.5,x1 .8, x2.0( 6modes) x0.8, x2.0 (display penetration depth) |
| 6.5MHz/R13 Dimpling array probe: x0.8, x1.0, x1.2, x1.5 (4 modes) |
| 7.5MHz/L40 Line array probe: x0.8, x1.0, x1.2, x1.5 (4 modes) |
| E-zoom | magnify 2 times of real time image |
| Dynamic Range | 0~120dB ajustable |
| Focus Position | 1,2,3 and 4-segments focusing |
| Image Processing | γcorrection, frame correlation,point correlation, line correlation,
digital filtering, digital edge enhancement and pseudo color
processing, etc. |
|
| Frequency Conversion | 2.5MHz/3.0MHz/3.5MHz/4.0MHz/5.0MHz five periods of frequency
conversion
frequency range applies 5.5 MHz/6.0 MHz/6.5 MHz/7.0 MHz/7.5MHz can
match high frequency probe |
| Measuring Function | Distance,circumference/area (method of ellipse, method of loci),
volume, heart rate, gestational weeks
(BPD,GS,CRL,FL,HL,OFD,TTD,AC), expected date of confinement and
fetus weight, etc. |
| Annotation Function | hospital name, patient’s name, age and gender 64 body marks (with
probe’s position);
Full-screen character annotation; Real-time clock display |
| Puncture Guide | convex array probe can display puncture guide line in B mode |
| Gain Control | 8 segments TGC and overall gain can be adjusted respectively |
| Image Polarity | left and right flip, black and white flip, up and down flip |
| Capacity Cine Loop | real time display 256 consecutive images which are memorized
successively |
| Image Playback | series playback or check one by one |
| Permanent Storage | 128 images |
| Output Interface | VGA video output offers connection to SVGA color display
PAL video output offers connection to PAL display and printer
video image recorder and image workstation, etc |
| USB Port | Offers storing images in USB flash disk |
