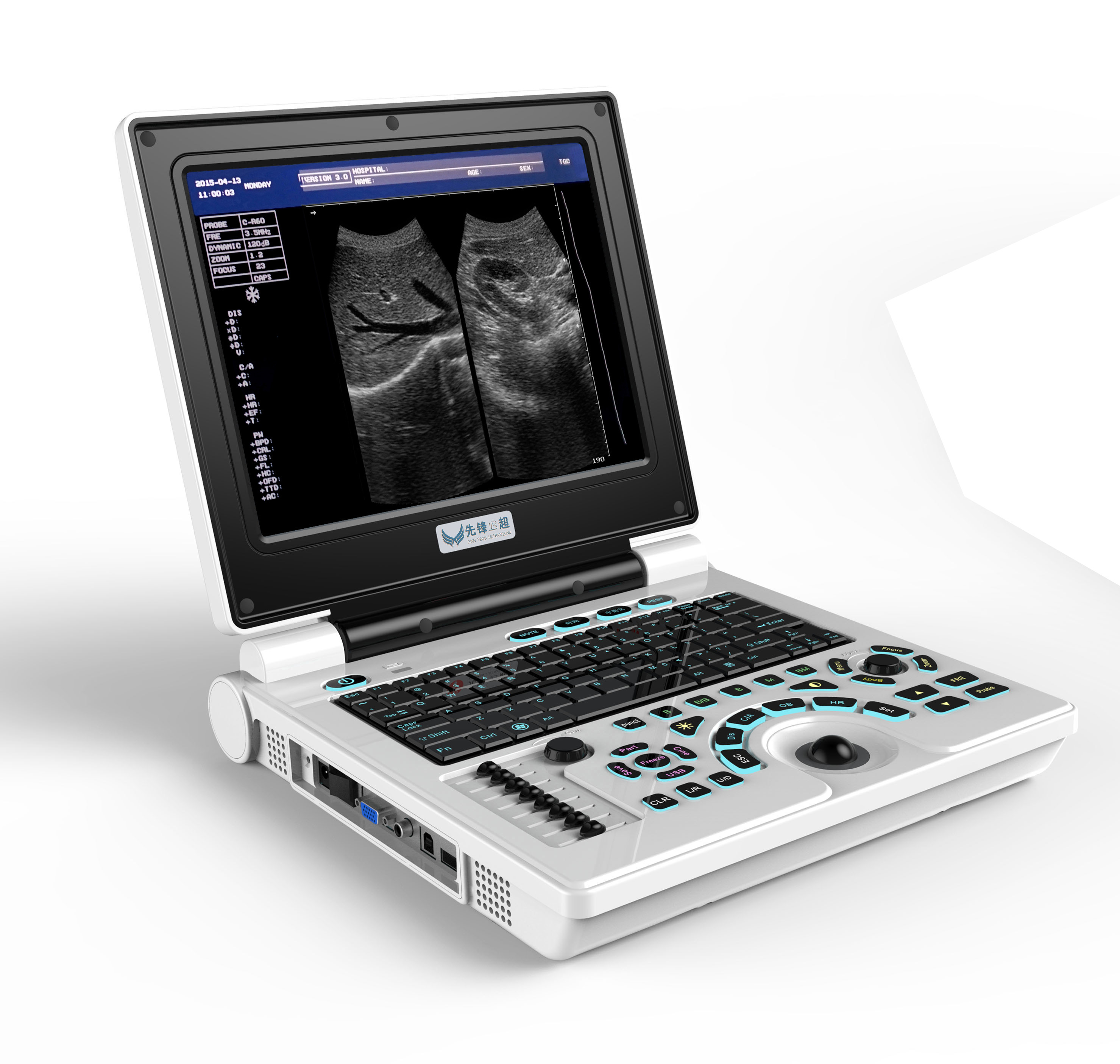

Model | XF30B Notebook Ultrasound Scanner |
| Display Modes | 3.5MHz/R60 convex array probe: B,B/B,4B,B+M,M |
| 6.5MHz/R13 Dimpling array probe: B |
| 7.5 MHz/L40 Line array probe: B |
| Image Mutiplying Factor | 3.5MHz/R60 convex array probe: x0.8, x1.0, x1.2, x1.5,x1 .8, x2.0 ( 6modes) x0.8, x2.0 (display penetration depth) |
| 6.5MHz/R13 Dimpling array probe: x0.8, x1.0, x1.2, x1.5 (4 modes) |
| 7.5MHz/L40 Line array probe: x0.8, x1.0, x1.2, x1.5 (4 modes) |
| E-zoom | magnify 2 times of real time image |
| Dynamic Range | 0~120dB ajustable |
| Focus Position | 1,2,3 and 4-segments dynamic electron focusing |
| Image Processing | γcorrection, frame correlation,point correlation, line correlation,
digital filtering, digital edge enhancement and pseudo color
processing, etc. According to the user’s pattern style preference, the parameter
will be set up automatically and saved ,Boot default this
parameter. This default of parameter can aslo be modified in the
menue. |
| Frequency Conversion | 2.5MHz/3.0MHz/3.5MHz/4.0MHz/5.0MHz five periods of frequency
conversion |
| frequency range applies | 5.5 MHz/6.0 MHz/6.5 MHz/7.0 MHz/7.5MHz can match high frequency
probe |
| Measuring Function | Distance,circumference/area (method of ellipse, method of loci),
volume, heart rate, gestational weeks
(BPD,GS,CRL,FL,HL,OFD,TTD,AC), expected date of confinement and
fetus weight, etc. |
| Annotation Function | hospital name, patient’s name, age and gender 64 body marks (with
probe’s position);Full-screen character annotation; Real-time clock
display |
| Puncture Guide | 3.5MHz convex array probe can display puncture guide line in B mode |
| Gain Control | 8 segments TGC and overall gain can be adjusted respectively |
| Image Polarity | left and right flip, black and white flip, up and down flip |
| Capacity Cine Loop | real time display 256 consecutive images which are memorized
successively |
| Image Playback | series playback or check one by one |
| Permanent Storage | 128 images |
| Output Interface | VGA video output offers connection to SVGA color display PAL video
output offers connection to PAL display and printer video image
recorder and image workstation, etc |
| USB Port | Offers storing images in USB flash disk |
